Search found 518 matches

by minorv8
Wed Apr 01, 2020 5:03 am
Forum: Engines Area
Topic: Rebuild of a RV8 4.6 instead of the 3.9
Replies: 6
Views: 77

Re: Rebuild of a RV8 4.6 instead of the 3.9

I don't think that V belt works with the 4.6 pump. It is too narrow. The serpentine belt is wider and has thus more surface area to transfer the motion to the pulley. I believe that once you have enough load at the pump the V belt starts slipping. I run a 4.6 with Real Steel Tornado cam. It is a hea...
by minorv8
Mon Mar 16, 2020 5:36 am
Forum: Exhaust, Cylinder Heads, Fuel And Intake Area
Topic: Thor Bannana Plenum
Replies: 15
Views: 530

Re: Thor Bannana Plenum

Easiest option as Eliot pointed out is to put a 90 degree elbow between the manifold and throttle body. It still on the same cluttered side but has more room.

If you need more space, cut the manifold flange off and weld a 90 degree elbow on the manifold. This moves the elbow towards the center.
by minorv8
Mon Mar 09, 2020 5:07 am
Forum: Drivetrain & Transmission Area
Topic: Bearing clearances
Replies: 2
Views: 184

Re: Bearing clearances

Pontiac 455 has 3,25" mains and Pontiac 400 has 3" mains.

If you choose the correct bearings for the crank size you should be close.
by minorv8
Thu Feb 06, 2020 6:35 am
Forum: Drivetrain & Transmission Area
Topic: What gearbox can I fit, 2 wheel drive
Replies: 8
Views: 287

Re: What gearbox can I fit, 2 wheel drive

There is limited length due to a chassis crossmember that cradles the end of the box . This cannot be modified so have to fit the new engine and box forward.
Why can´t you modify or move the crossmember ?
by minorv8
Thu Jan 30, 2020 5:16 am
Forum: Electrical & Ignition Area
Topic: PowerLite Starter.
Replies: 7
Views: 164

Re: PowerLite Starter.

I have not had these particular ones apart but an aftermarket unit instead. It was a clone of factory Bosch unit. The reduction gears exploded into million pieces and what is funny, it was 13 months from purchase. I took the reduction gear pieces back and asked if the 12 month guarantee was this wel...
by minorv8
Tue Jan 21, 2020 8:42 pm
Forum: Engines Area
Topic: Valve tip height
Replies: 10
Views: 260

Re: Valve tip height

Are you sure that this is all because of valve tip height ? Have you checked the difference by putting a straight edge on top of each valve ? This will show the actual difference between the valves. Sounds like you may have wear elsewhere.
by minorv8
Tue Jan 21, 2020 1:18 pm
Forum: Exhaust, Cylinder Heads, Fuel And Intake Area
Topic: SU shortening
Replies: 4
Views: 382

Re: SU shortening

Do you mean the piston, like this ? SUhif.jpg Some pistons have circlip, some don´t. I think that HIF44 does whereas HIF7 does not. Anyway, check if you have enough travel when the carb is assembled. You can machine the dashpot top lower, there is plenty of thread for the damper. If required you can...
by minorv8
Mon Jan 20, 2020 1:56 pm
Forum: Exhaust, Cylinder Heads, Fuel And Intake Area
Topic: SU shortening
Replies: 4
Views: 382

Re: SU shortening

You can get different dampers, e.g. http://sucarb.co.uk/damper-19098.html. That alone should gain close to 10 mm reduction in height. The threaded section at top is machined slightly lower, moderate machining should suffice. Same amount from the piston top if even required. A bit hard to tell but lo...
by minorv8
Thu Jan 16, 2020 7:06 pm
Forum: Drivetrain & Transmission Area
Topic: Another gearbox option
Replies: 20
Views: 1033

Re: Another gearbox option

Yes, commercial boxes have 4.1 or something first gear, also 2nd and 3rd ratios are a bit different.

My R380 box came from commercial vehicle and I had to rebuild it with passenger car gears. I got all I needed from Ashcroft. By the way, input shaft is also longer on commercial R380 boxes.
by minorv8
Fri Jan 03, 2020 7:17 am
Forum: Engines Area
Topic: Only running on 4 cylinders
Replies: 6
Views: 220

Re: Only running on 4 cylinders

Try new spark plugs in dead cylinders. I have had a few new ones failing due to cold engine and rich mixture.
by minorv8
Mon Dec 16, 2019 11:50 am
Forum: Engines Area
Topic: Difference
Replies: 24
Views: 647

Re: Difference

Also, old engines had different oil pump, timing gear cover, distributor package.
by minorv8
Mon Dec 16, 2019 7:48 am
Forum: Drivetrain & Transmission Area
Topic: Another gearbox option
Replies: 20
Views: 1033

Re: Another gearbox option

Too easy !
by minorv8
Fri Dec 13, 2019 12:53 pm
Forum: Body & Strengthening
Topic: How to improve BL Mini
Replies: 9
Views: 1399

Re: How to improve BL Mini

I have had a K1100 head for over 10 years and still the project is in early stages. I started machining stuff for it but messed up some adapter pieces. Then the project got stalled. I have since bought pistons from MED. Nowadays there are complete conversion kits which are tempting. So far I have re...
by minorv8
Fri Dec 13, 2019 11:27 am
Forum: Body & Strengthening
Topic: How to improve BL Mini
Replies: 9
Views: 1399

Re: How to improve BL Mini

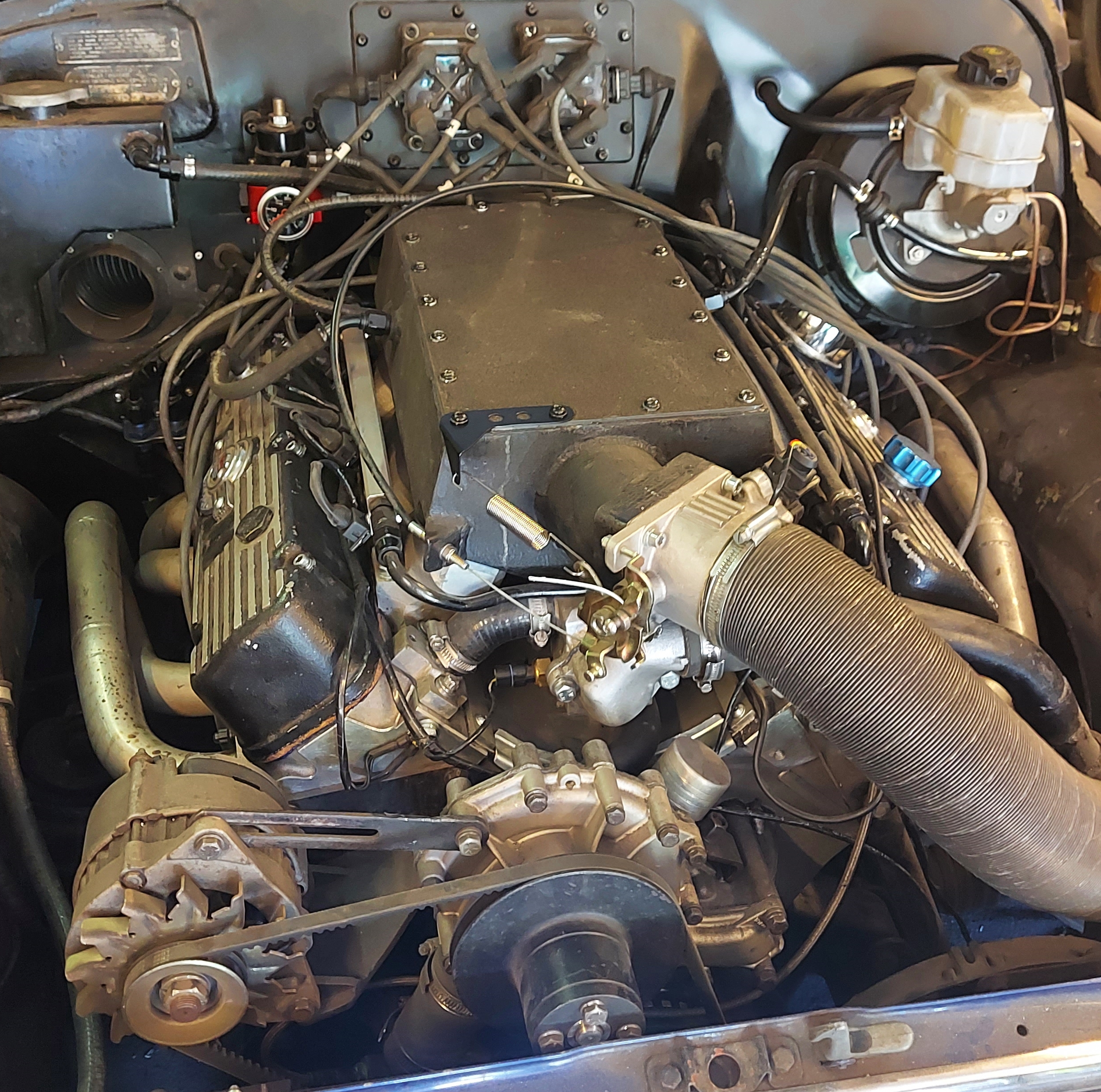

This is one neat way:

by minorv8
Thu Dec 12, 2019 10:51 am
Forum: Drivetrain & Transmission Area
Topic: Another gearbox option
Replies: 20
Views: 1033

Re: Another gearbox option

Another thing, I decided to use the BMW gear change assy for simplicity. I fitted urethane bushes. The rear mount is bolted to the body in Beemers but I did not want that so I made a simple support structure. It is bolted to the end of the box. The actual gearbox rear mount design is still open. I c...
