help with wires please..

Garth84x · Post by **Garth84x** » Sat Jul 04, 2009 2:59 pm

Hi all

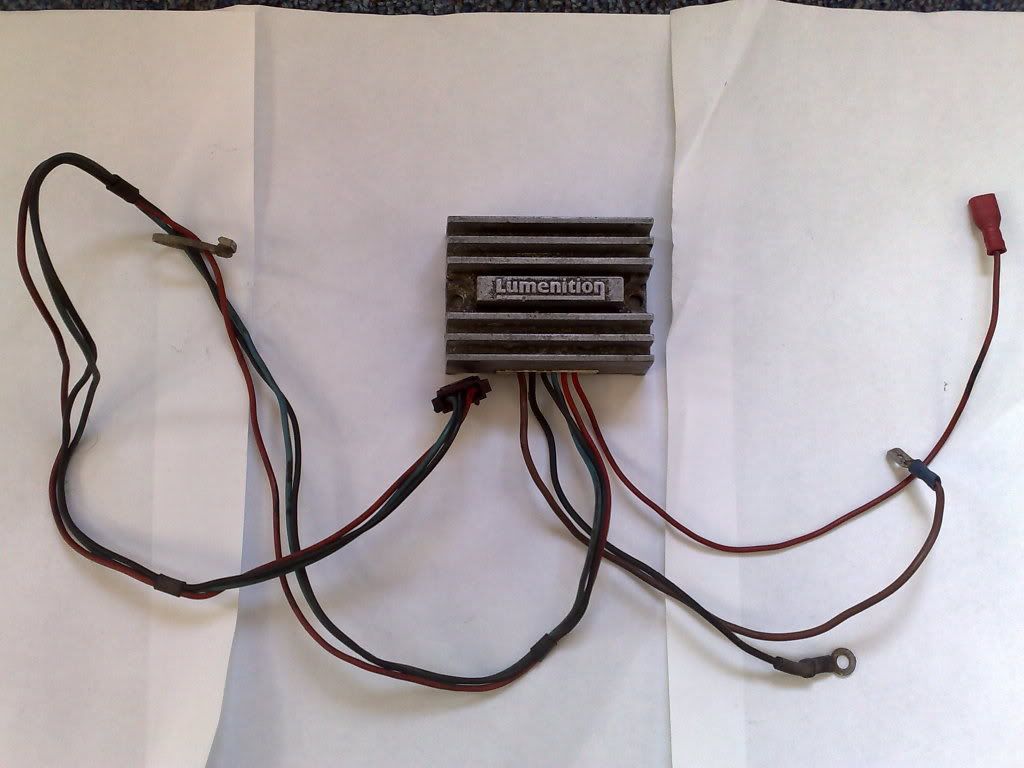

just bought a newer dizzy off ebay, and it came with this, can anyone help me with the three wires on the left please as im colour blind, and dont want to bugger it up.

thank you.

Garry

Stu E · Post by **Stu E** » Sat Jul 04, 2009 5:06 pm

The three wires in the plug go to the distributor plug, it will only go together one way.
According to my drawing the wire with the ring is earth the wire next to it on the module should be red and go to 12V the next three wires go to the plug and the last oneviolet goes to the negative side of the coil.

The colours are difficult to see, if you PM me your email I will scan and send you my Lumenition instructions.
HTH Stu.

Darkspeed · Post by **Darkspeed** » Sat Jul 04, 2009 6:27 pm

No purple on that lumi its an older version.

So to keep things simple

Are you sure you meant left !! thats a plug so should be straight forward

If you meant right

Top right - RED - Coil positive - which will also need an ignition Positive/Live connected to it.
Middle Right - Brown - Coil Negative
Bottom Right - Black - Earth/Negative/Chassis

Garth84x · Post by **Garth84x** » Sun Jul 05, 2009 2:06 am

D'oh !!

yes sorry right in the pic....

Thank you..

Garry

Garth84x · Post by **Garth84x** » Mon Aug 31, 2009 11:49 pm

wired the box up as above, but when i turn the ign off the - on the coils sparks?

any ideas?
