iv checked and double checked and im sure its very close, it certainly runs and sounds ok. I also spoke to you a while back about my eddy 500 running rich, i changed the jets, rods and springs to what you suggested, its still rich, plugs were all sooty, im using the 360 offenhauser manifold, i looke...

my timing marks seem to be way out when at tdc, whats the best way to check for tdc? iv tried most ways, but wondered whats the most accurate.

got the wiring diagrams for hilux wipers and new relay, need help to wire it up.

hope you can do something with that Dave, this is been doing my head in for ages, you cant get original wiper relays for mk2 now, so this is all i can do. To go over what the problem is, my wipers work on slow and high, washers work but not the wash and wipe, no intermittent and they wont park. I tr...

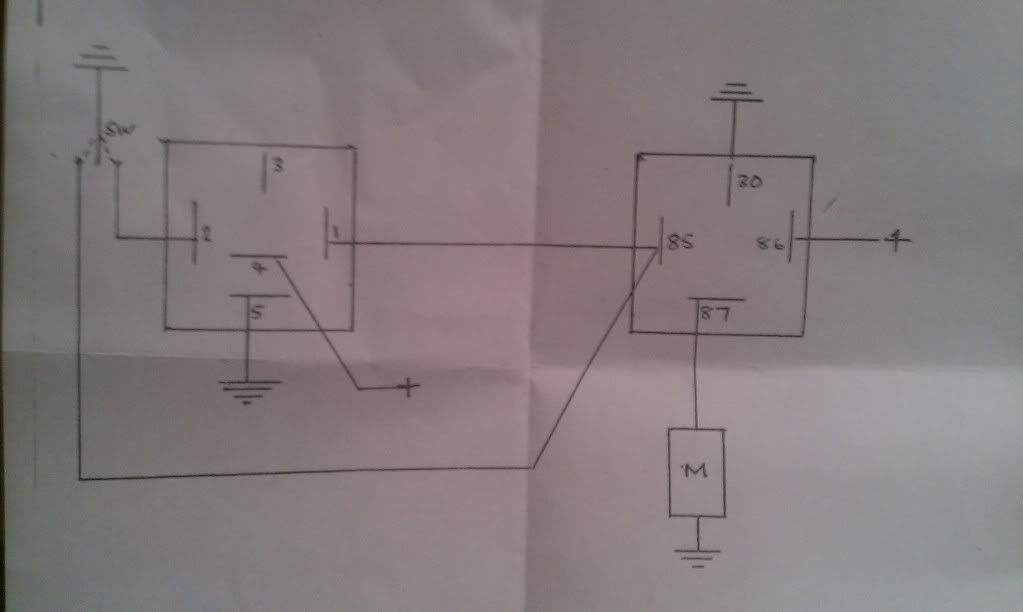

this is what came with the relays, looks a bit ropey but it should do.[code][/code]

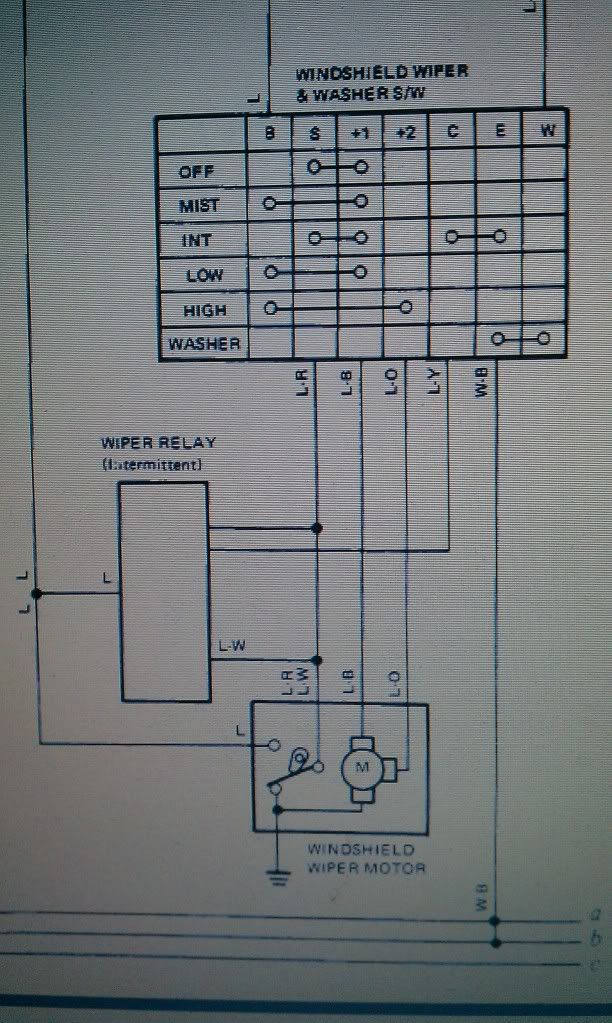

original hilux mk2 wiring diagram.[code][/code]

got a replacement relay, need help to wire it up.

my hilux wipers wont return to park, iv changed the wiper motor and put on a new wiper stalk. My old stalk had the wiper wash on the end, that didnt work, it works now with the new one, only problem is no intermittent wipe and no wipe with the washers. I discovered the wiper relay was missing, cant ...

my oil light goes out aswell when cranking.

so i need to wire it via the oil pressure switch and conect to ignition so that pump comes on not when ignition lights are on, but when im cranking the engine?

which part of the ignition does the power need to be connected to on an electric fuel pump? has it to be wired so it comes on as ignition is switched on or when engine is turning on starter?

i was thinking that myself, i think my carb needs setting up. its popping through the exhausts when cold, plugs are sooty. going to stick with manual choke. Where do you get the proper linkage for the manual eddy 500 choke?

hi folks

iv got a manual choke on my eddy 500, iv not connected it up yet, but with the colder weather i think nows the time. Is it best as manual or convert to electric choke?

its a brand new battery mate, just fitted yesterday.

i set the idle at 2000rpm and the voltmeter showed approx 14.12v
